Type: |
Maximally
flat (Butterworth) digital high pass filter |
Slope: |
selectable
from 6 dB/Octave to 192 dB/Octave |
Step response
overshoot: |
|
|
-1.261 dB
at 192 dB/oct |
|
-0.631 dB
at 96 dB/oct |
|
-0.317 dB
at 48 dB/oct |
|
-0.162 dB
at 24 dB/oct |
|
-0.875 dB
at 12 dB/oct |
Stop Band
Attenuation: |
> 260 dB |

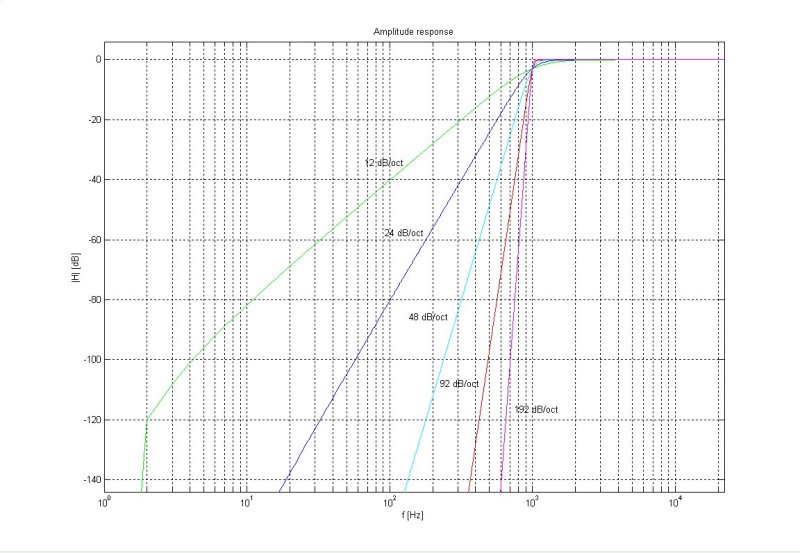

Plotted below
is the amplitude response for a 1.0 kHz cut frequency at 44.1 kHz sampling
rate for a number of filter slopes.
.
